Plastic Hoses

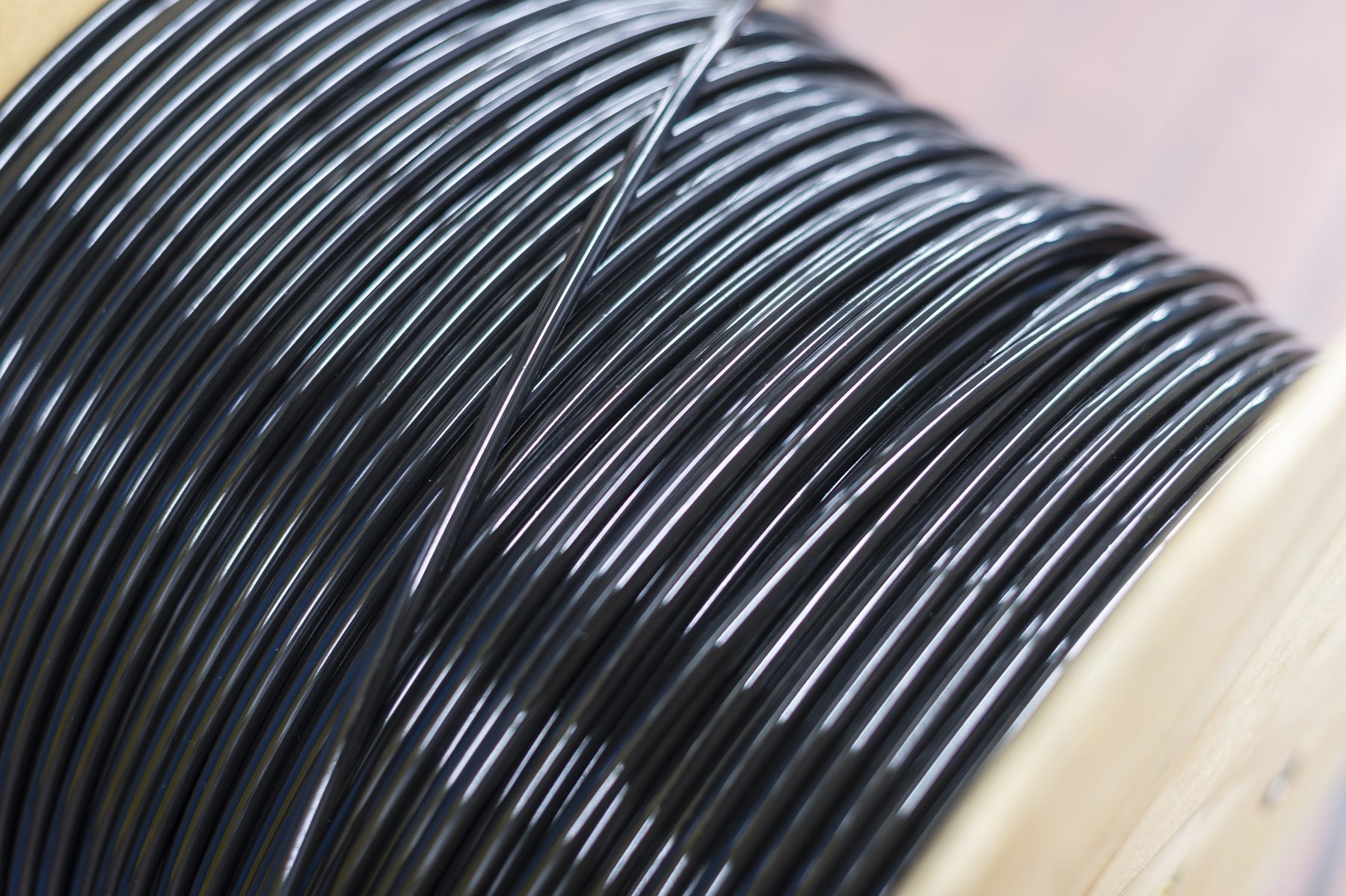

eba pneumatic plastic hoses are used as control lines in instrumentation and control engineering, laboratory technology, and apparatus and tank construction. Low weight, impact resistance and broad resistance to acids, alkalis and salt solutions are characteristic properties of this material.
LD-PE
PA12-PHL · PA12-HL · PA-SFL
PUR · PUR-L
OD 2.5–22 mm
Standard range
Plastic Hoses Overview
Nominal dimensions · cross-section
OD = outer Ø · ID = inner Ø · WD = wall thickness
| Material | Outer Ø in mm |
Tolerances OD in mm |
Temp. in °C |
Operating Pressure in bar |
Colours | Properties | Applications / Notes |
More Information |
|---|---|---|---|---|---|---|---|---|
| LD-PE | 4.00 – 20.00 | OD 4–10: ±0.10 OD 11–20: ±0.15 |
-10 / +40 | 5 – 20 | natural, blue, red, black, green, yellow, grey | Hoses made of polyethylene (LD-PE) are characterized by low weight, high impact resistance and good resistance to acids, alkalis and salt solutions. They are recyclable according to EC regulations. | Control lines in instrumentation, laboratory tech, apparatus/tank construction, agricultural technology. | To Wiki |
| PA 12 | 2.50 – 22.00 | OD 2.5–8: ±0.07 OD 9–13: ±0.10 OD 14–22: ±0.15 |
-60 / +100 | 12 – 44 | natural, blue, red, black, green, yellow, grey | Tubes made of polyamide 12 (PA 12 PHL) are flexible, easy to install and offer high temperature resistance. They are recyclable according to EC regulations. | Compressed air brakes, hydraulics, fuel lines. Also available as PA 12 HL (rigid). | To Wiki |
| PA 12 HL | 2.50 – 22.00 | OD 2.5–8: ±0.07 OD 9–13: ±0.10 OD 14–22: ±0.15 |

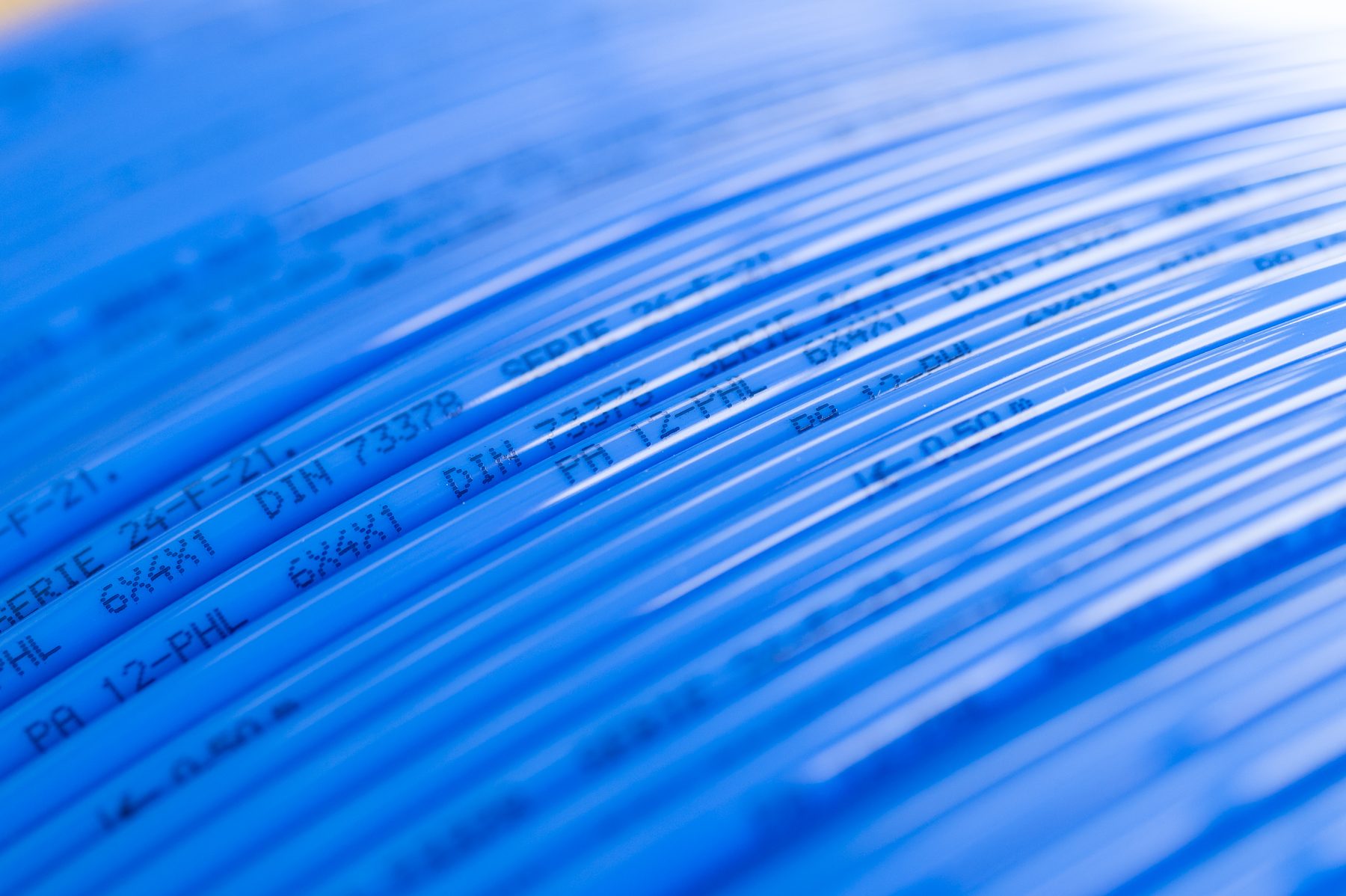

-60 / +100 | 15 – 38 | natural, blue, red, black, green, yellow, grey | Tubes made of polyamide 12 (PA 12 HL) in a rigid version are particularly suited for applications requiring elevated pressures. They offer a wide temperature range and are preferred for compressed air brakes, hydraulics and fuel lines per DIN 73378. Recyclable according to EC regulations. | Compressed air brakes, hydraulics, fuel lines per DIN 73378. | To Wiki |
| PA-SFL | 4.00 – 16.00 | OD 4–8: ±0.07 OD 9–13: ±0.10 OD 14–16: +0.10/−0.15 |
-50 / +60 | 10 – 36 | natural, blue, red, black, green, yellow, grey | Tubes made of polyamide (PA-SFL) offer excellent weather and abrasion resistance as well as a small bending radius. Since they are produced without plasticizers, they do not age or become brittle. They are recyclable according to EC regulations. | Extra-flexible tubes for applications with small bending radius. | To Wiki |
| PUR (Typ C98) |
4.00 – 15.00 | OD 4–10: ±0.09 OD 11–15: ±0.12 |
-35 / +60 | 7 – 21 | natural, blue, red, black, green, yellow, grey | Hoses made of polyester polyurethane (PUR) are characterized by good recovery, high tear and abrasion resistance and excellent cold flexibility, and are resistant to aliphatic hydrocarbons and lubricating oils. They are recyclable according to EC regulations. | Pneumatics, robotics, handling, industrial automation. | To Wiki |
| PUR (Typ 1154) |
4.00 – 15.00 | OD 4–10: ±0.09 OD 11–15: ±0.12 |
-25 / +50 | 7 – 21 | clear, blue-transparent, black-transparent | Hoses made of polyether polyurethane (PUR, Type 1154) show outstanding properties across a wide temperature range: good hydrolysis resistance, cold flexibility and resistance to microorganisms, good wear resistance and high tensile strength as well as excellent damping performance. Recyclable according to EC regulations. | Pneumatics with elevated requirements on hydrolysis and microorganism resistance. | To Wiki |
| PUR-L (Typ 1198) |
4.00 – 15.00 | OD 4–10: ±0.09 OD 11–15: ±0.12 |
-25 / +50 | 8 – 19 | natural | Hoses made of polyether polyurethane (PUR-L, Type 1198) provide good hydrolysis resistance, high cold flexibility and resistance to microorganisms. They also feature high tensile strength and good damping capacity, are recyclable according to EC regulations and food-safe. | Food industry, pharma, medical technology. | To Wiki |
| PUR multi-line hoses |
4.00 – 10.00 | ±0.09 | -35 / +60 | 9 – 21 | blue, black, natural, green | Multi-line hoses made of polyurethane (PUR) — welded as DUO, TRIO or QUADRO — enable space-saving parallel routing and are used with union nuts. | Space-saving 2-, 3- or 4-way routing in pneumatics. | To Wiki |
| PA 12 multi-line tubes |
6.00 – 8.00 | ±0.07 | -60 / +100 | 12 – 44 | blue, black | Tubes made of polyamide 12 (PA 12 PHL) as welded double tubes offer high temperature resistance and are used with union nuts. | Pneumatics, control technology. | To Wiki |
All dimensions and item numbers in the product catalogue · materials knowledge in the knowledge base
